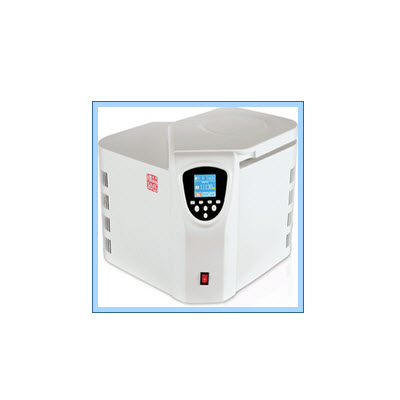

3H20RI智能高速冷冻离心机是先进的智能仪器设备，是广泛应用于生物化学、医疗卫生、食品安全、生命科学、农林科学、牧业科学、血库、血站、生物制品、药物制品等领域对样品进行分离沉淀和浓缩制备的理想设备，是励志于替代进口仪器并大量出口的高新技术产品。
3H20RI intelligent high speed refrigerated centrifuge is an advanced facility widely applied in biochemistry, health and medicine, food safety, life science, agriculture science, grassland farming science, blood bank, blood station, biological product, pharmacy product, to make sample separation, precipitation and concentration, and it is the high-tech product aiming at replacing import facility and becoming export.
★★特性★★
1.采用大力矩无刷变频电机，控制采用Microchip公司的dsPIC30F系列单片机控制，电机驱动采用FAIRCHILD公司的FSBB30CH系列专用驱动模块，保证了电路的高可靠性。
2.配以海量NandFlash内存，保证了仪器有较好的人机界面，能存储多组用户试验数据，操作提示图文并茂，使用户操作更加简单易懂。
3.集成USB接口电路，能满足用户提出的特殊要求，使用户升级方便实惠。
4.整机设计符合人机工程学，流线型设计，全钢结构，不锈钢离心腔，更加安全美观实用。
5.设有超速、超温、不平衡等多种保护措施，特殊组合减震装置，使电机平稳运行。设有三层钢套保护、运行安全可靠、确保人身设备安全。
6.采用了进口环保无氟制冷压缩机组和控制阀，制冷速度快，效率高，温控精度高，噪音小，稳定可靠。转子在静止状态时实现待机冷却功能。
7.TFT真彩大屏幕触控液晶显示，智能化控制、简单方便地操作、触摸面板，同时显示设定参数和运行参数。
8.设有离心力显示专用键。点动功能，短暂离心。
9.采用静音机电一体化电机门锁。
10.可提供100种以上工作模式选择，可自由编程、调用。
11.10档加速/减速速率控制。
12.*高转速：20800r/min，*大离心力：30000×g。
**Features**:
*With brushless frequency motor in great torque, dsPIC30F series singlechip by Microchip company plays the controlling, while FSBB30CH series driving module by FAIRCHILD company plays the driving, ensuring the high reliability of circuit.
*Equipped with great capacity internal memory of NandFlash, there is an excellent human-computer interface, saving groups of experiment data, with vivid pictures and words, making user easily understand.
*The integrated USB interface circuit can meet the special requirements of users, making the upgrading convenient and cheap.
*The design is in line with ergonomics, with stream line sculpt, all-steel structure and stainless steel centrifuge chamber, being safe, aesthetic and practical.
*There are various protective measures of overspeed overheat and imbalance, special shock-mitigating device, making it work steadily. Three-layer steel jacket could ensure the safety of the user and machine.
*Equipped with import environmental compressors fluorine free and control valve, the machine is steady and reliable, with high refrigeration speed, high effectiveness, high temperature control precision, and less noise. Rotor could realize cooling function in stationary stage.
*TFT true color large screen of liquid-crystal display can show the set parameter and operation
parameter at the same time, with intelligent control, convenient operation, and touch panel.
*There is a dedicated key of centrifugal force. With jog function and transient centrifugation.
*Motor gate lock with mute mechanical & electrical integration.
*Providing more than 100 kinds of operating modes, you are free to programme and apply.
*10 levels for speedup/speeddown control.
*Maximum rotate speed: 20800r/min, Maximum centrifugal force:30000(xg).
★★技术参数★★
Technical parameters
型 号
Model
3H20RI
*大容量
Maximum capacity
4×100ml水平转子
Swing rotor
*高转速（r/min）
Maximum rotate speed
20800
*大离心力（×g）
Maximum centrifugal force
30000
标配转子
Rotor in standard configuration
12×1.5/2.0 ml(钛合金)
Titanium
转速精度
Rotate speed precision
±50r/min
制冷系统
Refrigeration system
进口无氟制冷压缩机组和控制阀
Import compressors fluorine free and control valve
温控范围
Control temperature range
－20℃～40℃
温控精度
Temperature control precision
±1℃
定时范围
Time range
0-99h59min
噪 音
Noise
≤65dB
电 源
Power
AV220V 50Hz
重 量
Weight
75kg
外形尺寸（长×宽×高）
Dimension(LxWxH)
710×630×350mm
★★转子配置★★
**Rotor configuration**
产品名称
Product Name
容量
Capacity
3H20RI
转速
Rotate speed
离心力
Centrifugal Force
角转子
Angle Rotor
12×1.5/2.0ml
20800
30000
10×5ml
16000
17700
24×1.5/2.0ml
14000
18200
12×10ml/5ml
14000
18800
6×50ml
12000
13800
4×100ml
10000
10500
水平转子
Swing Rotor
4×100ml
4000
2100
12×10ml
4000
2330
4×50ml
4000
2150
4×10ml
6000
3200
水平酶标板转子
Swing ELISA plate rotor
2×2×48孔
3000
1400
角转子
Angle Rotor
48×0.5ml
13000
16300
30×1.5ml
12000
15300
18×1.5ml
16000
17700
